In Canada, where the climate can range from freezing winters to warm summers, energy efficiency and indoor air quality are essential components of comfortable, healthy homes. Insulation and ventilation are two key elements that contribute to maintaining a well-regulated indoor environment while also reducing energy consumption. Proper insulation helps retain heat in the winter and keep homes cool in the summer, while effective ventilation ensures that fresh air circulates and humidity is controlled. This paper explores the best practices for insulation and ventilation in Canadian homes, focusing on achieving optimal energy efficiency and air quality.
The Importance of Insulation
Insulation plays a critical role in minimizing heat loss in winter and reducing heat gain in summer, thus lowering the energy required for heating and cooling. Well-insulated homes not only offer comfort to occupants but also contribute to lower energy bills and a smaller environmental footprint.
Types of Insulation
The choice of insulation materials depends on the specific climate zone, location within the home, and the structure of the building. The following are the most commonly used insulation types in Canadian homes:

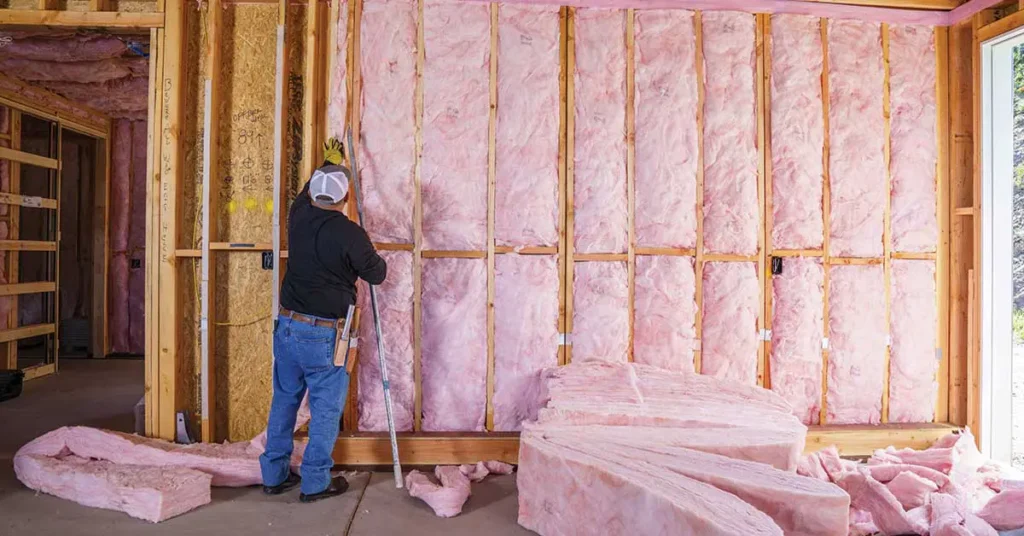

1. Fibreglass Insulation
Fibreglass insulation, available in batts or rolls, is one of the most popular insulation materials in Canada. It is cost-effective, easy to install, and provides good thermal resistance (R-value).
- Best Use: Walls, attics, and floors.
- Pros: Inexpensive, easy to handle, and non-combustible.
- Cons: Can lose effectiveness if compressed or exposed to moisture.
2. Spray Foam Insulation
Spray foam insulation expands to fill gaps and crevices, creating an airtight barrier that minimizes air leaks and provides excellent insulation.
- Best Use: Sealing hard-to-reach areas, such as around windows, doors, and electrical outlets.
- Pros: High R-value per inch, air sealing, and moisture resistance.
- Cons: Higher cost and requires professional installation.
3. Rigid Foam Insulation
Rigid foam insulation, made from materials like polystyrene or polyisocyanurate, offers high R-values and moisture resistance. It is often used in exterior walls and foundations.
- Best Use: Exterior walls, basements, and foundations.
- Pros: High R-value, water-resistant, and durable.
- Cons: Can be more expensive than other types of insulation.

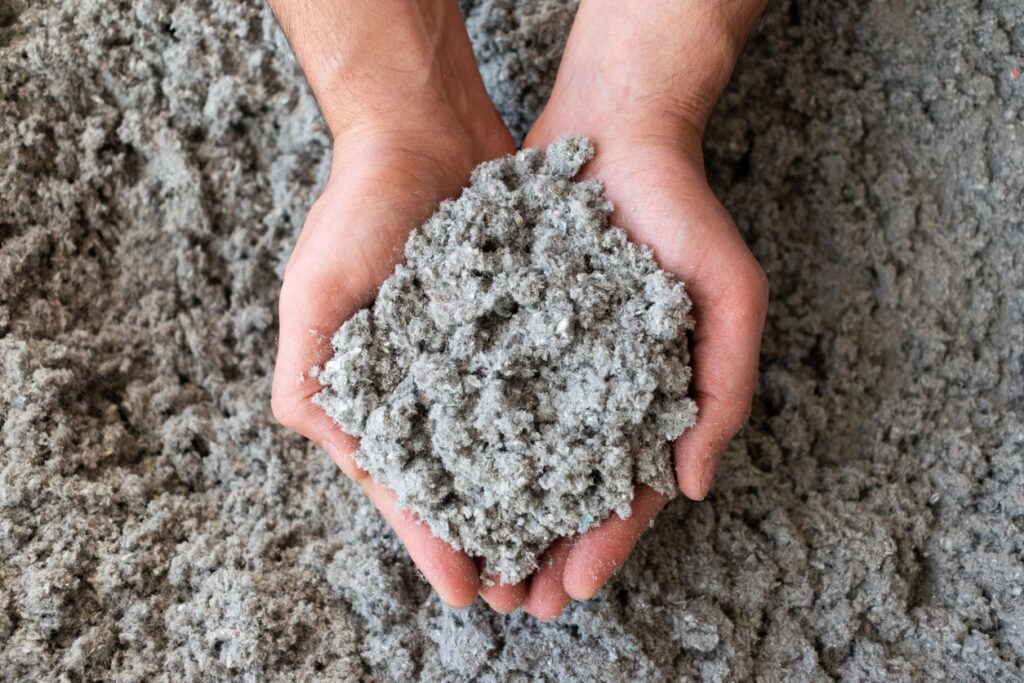

4. Cellulose Insulation
Made from recycled paper products, cellulose insulation is an eco-friendly option that provides good thermal performance and soundproofing.
- Best Use: Walls and attics.
- Pros: Environmentally friendly, good at reducing air infiltration.
- Cons: Requires professional installation and can settle over time, reducing its effectiveness.
Key Areas for Insulation
Proper insulation placement is vital to ensure maximum energy efficiency in Canadian homes. Specific areas should be prioritized for insulation:
1. Attics
Heat rises, making the attic one of the most critical areas to insulate. Without adequate insulation, warm air escapes through the roof, increasing heating costs.
- Recommended R-Value: R-50 to R-60, depending on the region.
- Best Practices: Use blown-in cellulose or fibreglass batts, and ensure proper ventilation to prevent moisture buildup.
2. Walls
Exterior walls account for a significant amount of heat loss in poorly insulated homes. Wall cavities should be filled with insulation to reduce heat transfer.
- Recommended R-Value: R-20 to R-24, depending on the climate zone.
- Best Practices: Use fibreglass batts or spray foam to ensure full coverage and reduce thermal bridging.
3. Basements and Foundations
In cold climates, basements and foundations can allow substantial heat loss. Insulating these areas helps maintain comfortable indoor temperatures and prevents moisture infiltration.
- Recommended R-Value: R-12 to R-20 for basement walls.
- Best Practices: Rigid foam or spray foam insulation is ideal for basements and foundations to resist moisture and temperature fluctuations.
4. Floors
Insulating floors over unheated spaces, such as garages or crawl spaces, prevents heat loss and keeps floors warm during the winter.
- Best Practices: Use fibreglass batts or rigid foam under the floorboards and ensure proper air sealing around edges and gaps.
The Role of Ventilation in Canadian Homes
While insulation keeps homes warm and energy-efficient, proper ventilation is essential for maintaining indoor air quality. In well-insulated homes, especially those built to modern energy-efficiency standards, poor ventilation can lead to stale air, moisture buildup, and an increase in indoor pollutants.
Types of Ventilation Systems
Ventilation systems in Canadian homes range from simple exhaust fans to more sophisticated whole-house systems that continuously exchange stale indoor air with fresh outdoor air.
1. Exhaust Ventilation
Exhaust ventilation systems use fans to expel stale air from the home, typically from kitchens and bathrooms, where moisture and odors are most common.
- Best Practices: Ensure that exhaust fans are properly sized and vented to the outside. Use exhaust fans during cooking and showering to remove moisture and prevent mold growth.
2. Supply Ventilation
Supply ventilation systems bring fresh outdoor air into the home, pressurizing the interior and forcing stale air out through natural leaks or exhaust vents.
- Best Practices: Supply fans should be installed in areas where fresh air is most needed, such as living rooms and bedrooms.

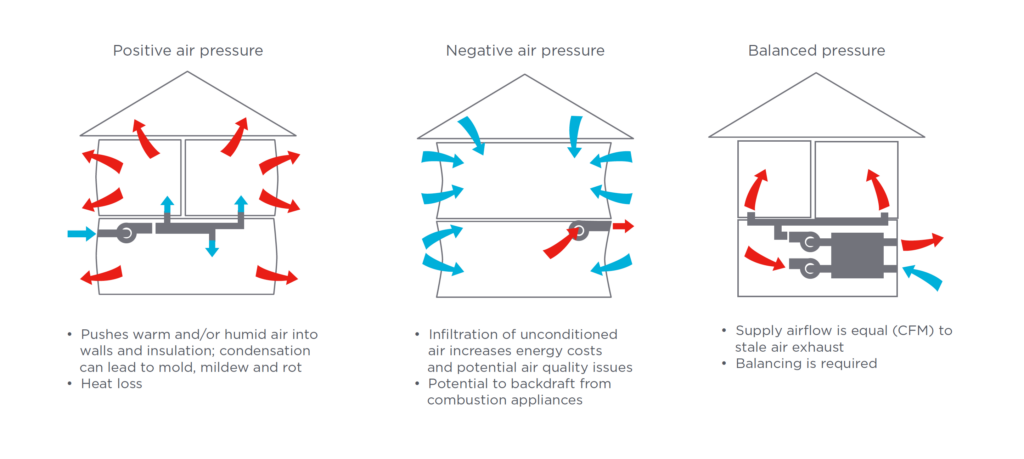

3. Balanced Ventilation
Balanced ventilation systems combine both supply and exhaust fans to provide a controlled, continuous exchange of indoor and outdoor air. These systems are ideal for energy-efficient homes, as they help regulate humidity and maintain good indoor air quality.
- Best Practices: A Heat Recovery Ventilator (HRV) or Energy Recovery Ventilator (ERV) is often used to improve energy efficiency by transferring heat or energy between the outgoing and incoming air.
4. Heat Recovery Ventilators (HRVs) and Energy Recovery Ventilators (ERVs)
HRVs and ERVs are advanced ventilation systems that improve indoor air quality while minimizing energy loss. These systems recover heat from the outgoing stale air and use it to preheat the incoming fresh air, reducing the energy needed to heat or cool the home.
- HRV vs. ERV: HRVs are more effective in colder climates, where maintaining indoor warmth is crucial. ERVs, on the other hand, are better suited for homes in more humid regions, as they also manage humidity levels.
- Best Practices: Install HRVs or ERVs in tightly sealed, well-insulated homes to ensure a continuous supply of fresh air without sacrificing energy efficiency.
Ventilation Best Practices for Canadian Homes
Proper ventilation is crucial to prevent issues like condensation, mold growth, and poor air quality. The following best practices ensure adequate ventilation in Canadian homes:
1. Ventilation Rates
Ensure that the ventilation system is sized appropriately for the home’s square footage and occupancy. The Canadian Standard Association (CSA) recommends a minimum ventilation rate of 0.35 air changes per hour for healthy indoor air quality.
2. Control Humidity
Homes in Canada experience varying humidity levels throughout the year. Ventilation systems should be designed to maintain humidity levels between 30% and 50%, as excessively high or low humidity can lead to health and structural issues.
3. Seal Ductwork
Leaky ductwork can reduce the efficiency of both insulation and ventilation systems. All duct joints and connections should be sealed to prevent air leakage and ensure that conditioned air is delivered where needed.
Balancing Insulation and Ventilation for Optimal Performance
For Canadian homes, it’s crucial to strike the right balance between insulation and ventilation. While insulation retains heat and reduces energy consumption, ventilation ensures that the indoor environment remains fresh and healthy. Without proper ventilation, a well-insulated home can trap moisture, leading to condensation, mold growth, and indoor air pollution.
- Best Practices: When upgrading insulation, ensure that the home’s ventilation system is capable of providing adequate fresh air exchange. Modern homes with tight building envelopes should always include mechanical ventilation systems, such as HRVs or ERVs, to prevent moisture buildup and maintain air quality.
Conclusion
In Canadian homes, insulation and ventilation work hand in hand to ensure energy efficiency and maintain a healthy indoor environment. Proper insulation reduces energy consumption by minimizing heat loss in winter and heat gain in summer, while ventilation systems ensure that fresh air circulates and moisture is controlled. By following best practices for both insulation and ventilation, Canadian homeowners can create comfortable, efficient, and sustainable living spaces that meet the challenges of the country’s diverse climate.
